LC/UPC-Optitap (SC/APC) 2F Armored I/O Duplex, Single Mode, 1000ft
Part Number:
123-F4X2-1A4H7-1000F-PS
Couldn't load pickup availability

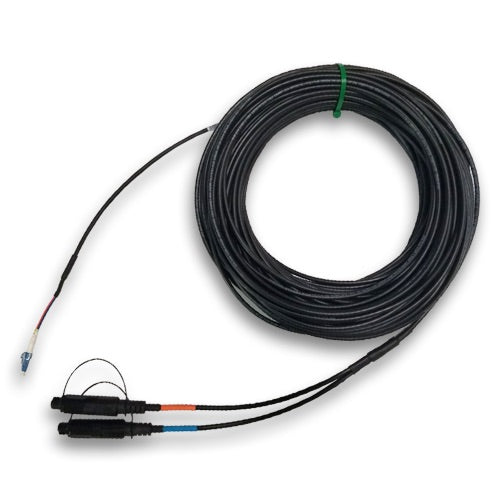

LC/UPC-Optitap (SC/APC) 2F Armored I/O Duplex, Single Mode, 1000ft
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -25°C to +80°C |
| Varmint Rating | Armored tube：Stainless Steel |
| PHYSICAL SPECIFICATIONS | |
| Connector A | LC/UPC Duplex |
| Connector B | Optitap (SC/APC) Duplex |
| Fiber Count | 2 |
| Breakout Length Side A | 36IN |
| Breakout Length Side B | 36IN |
| Furcation | 2 mm |
| Fiber Type | G652D MM62.5/125 G657 |
| Jacket Color | Black |
| Jacket Material | LSZH, I/O |
| Outer Diameter | 5.0mm ±0.2 |
| Type | |
|---|---|
| Size | |
| Connection type |
