By 123eWireless

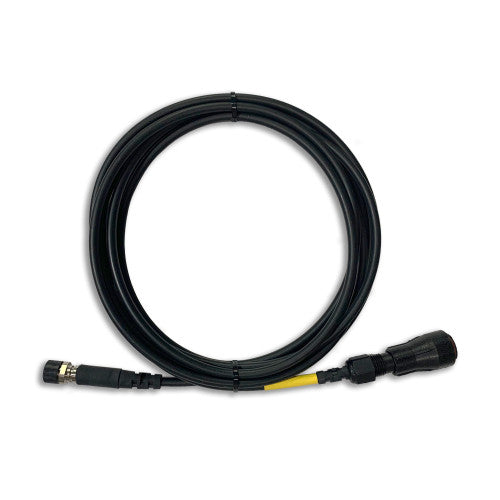

ODC Female to LC Duplex, Singlemode, 2F Round Distribution Armored, w/ FiberSeal, 3M
Part Number:
123-F42-1GD-03M-FS
Couldn't load pickup availability
ODC Female to LC Duplex, Singlemode, 2F Round Distribution Armored, w/ FiberSeal, 3M
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| Varmint Rating | Yes |
| PHYSICAL SPECIFICATIONS | |
| Armor | Monocoil W/Stainless Steel Mesh |
| Connector A | LC/UPC Uniboot with FiberSeal |
| Connector B | AARC (ODC) Female |
| Fiber Count | 2 |
| Breakout Length Side A | N/A |
| Breakout Length Side B | 200mm |
| Fiber Type | SMF-28® Ultra 900um Distribution |
| Jacket Color | Black |
| Jacket Material | OFNR, I/O |
| Outer Diameter | 9.0mm |
| Type | |
|---|---|
| Size | |
| Connection type |
