By 123eWireless

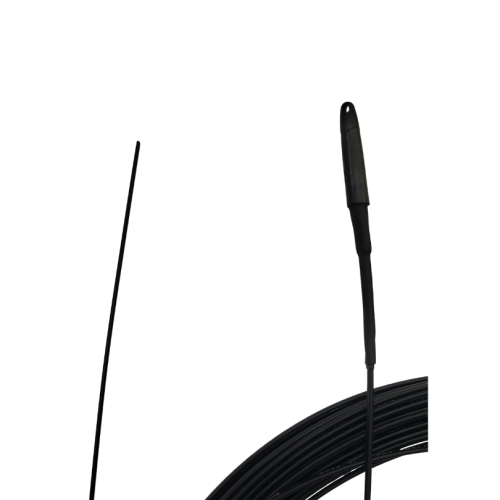

Pigtail Pushlok APC, SMF-28E, 1F ROC 900 Drop, Dielectric, 200M
Part Number:
123-00D101EB49R200M-PZ
Couldn't load pickup availability
Pigtail Pushlok APC, SMF-28E, 1F ROC 900 Drop, Dielectric, 200M
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | Bi Dir. 1310nm, 1550nm, < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| Varmint Rating | None |
| PHYSICAL SPECIFICATIONS | |
| Connector A | Undetermined (pigtail) |
| Connector B | Evolv Pushlok (SC/APC) |
| Fiber Count | 1 |
| Breakout Length Side A | 6IN |
| Breakout Length Side B | 53IN ± 1IN |
| Fiber Type | SMF-28E |
| Jacket Color | Black |
| Jacket Material | ROC 900 Drop |
| Outer Diameter | 8.0mm x 5 |
| Size | |
|---|---|
| Connection type |
