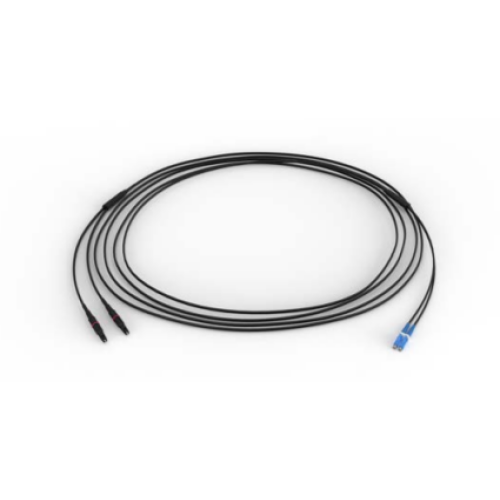

Pushlok Optap Converter / LC UPC Connector, Duplex, Clearcurve, LBL, 2F, SST-DROP, DIELECTRIC, 75ft
Part Number:
123-D30402JB4FD075F-P
Couldn't load pickup availability
Pushlok Optap Converter / LC UPC Connector, Duplex, Clearcurve, LBL, 2F, SST-DROP, DIELECTRIC, 75ft
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | Bi Dir. 1310nm, 1550nm, < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| Varmint Rating | None |
| PHYSICAL SPECIFICATIONS | |
| Connector A | LC/UPC Duplex |
| Connector B | Evolv Pushlok (SC/APC) |
| Fiber Count | 2 |
| Breakout Length Side A | 6IN |
| Breakout Length Side B | 53IN ± 1IN |
| Fiber Type | SMF-28E |
| Jacket Color | Black |
| Jacket Material | SST Drop |
| Type | |
|---|---|
| Size | |
| Connection type |
