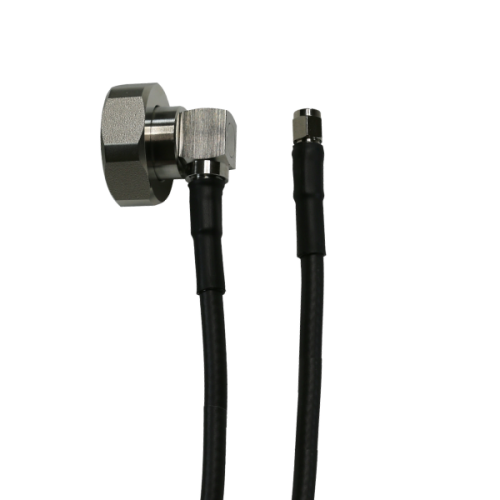

DIN Male Right Angle to SMA Male Low Loss 240 RF Jumper, 4M
Part Number:
123-14DMRSMA-04M
Couldn't load pickup availability
DIN Male Right Angle to SMA Male Low Loss 240 RF Jumpers, 4M
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 698-2200 MHz |
| Impedance | 50 Ohm |
| Return Loss | -18db |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C To +85°C |
| Weather Standard | IP 67 |
| PHYSICAL SPECIFICATIONS | |
| Coax Cable Type | Low Loss 240 |
| Connector A | DIN Male Right Angle |
| Connector B | SMA Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 0.24 (in) |
| Type | |
|---|---|
| Size | |
| Connection type |
