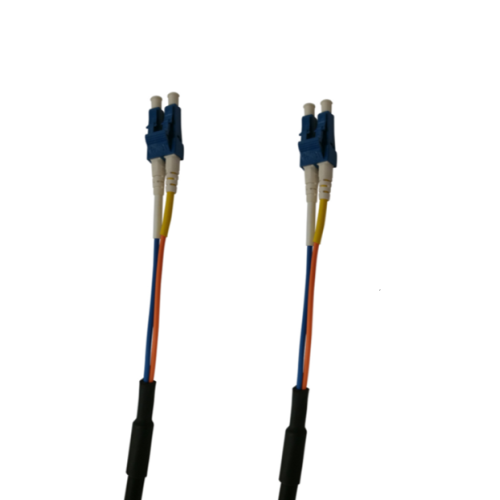

LC/UPC-LC/UPC 2F Duplex, Single Mode I/O Jumper, 8ft
Part Number:
123-F1D2-1A477-08F
Couldn't load pickup availability
LC/UPC-LC/UPC 2F Duplex, Single Mode I/O Jumper, 8ft
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| Varmint Rating | None |
| PHYSICAL SPECIFICATIONS | |
| Connector A | LC/UPC Duplex |
| Connector B | LC/UPC Duplex |
| Fiber Count | 2 |
| Breakout Length Side A | 90mm |
| Breakout Length Side B | 90mm |
| Furcation | 2 mm |
| Fiber Type | SMF-28® Ultra |
| Jacket Color | Black |
| Jacket Material | OFNR, I/O |
| Outer Diameter | 5.4mm |
| Type | |
|---|---|
| Size | |
| Connection type |
