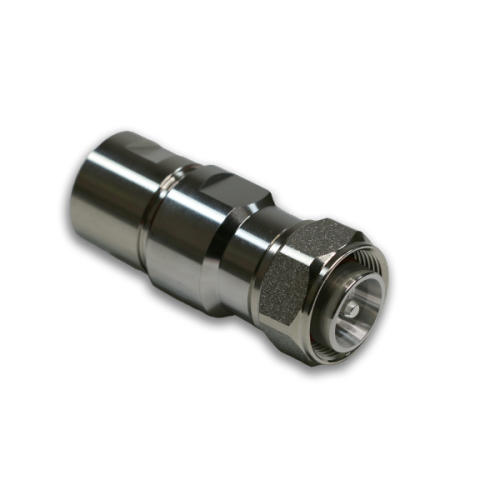

4.3-10 Male Compression Connector for 1/2" Flexible Cable
Part Number:
123-1HM-C
Couldn't load pickup availability
4.3-10 Male compression connectors are the easiest connectors to install in the field. Simply strip the 1/2" flexible cable, push the connector onto the cable, and with the RIGID tool compress it into place. 123eFit compression connectors by 123eWireless are designed for LOW PIM applications of <-160 (2*43dBm)
| CROSS REFERENCE | |
| Alternative To | HL4RP-50A, 43M-LCF12-D01 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | <-160 (2*43dBm) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Weather Standard | IEC 60068 40 /085/22 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Options | Compression |
| Connector A | 4.3/10 Male |
| Type | |
|---|---|
| Size | |
| Connection type |
