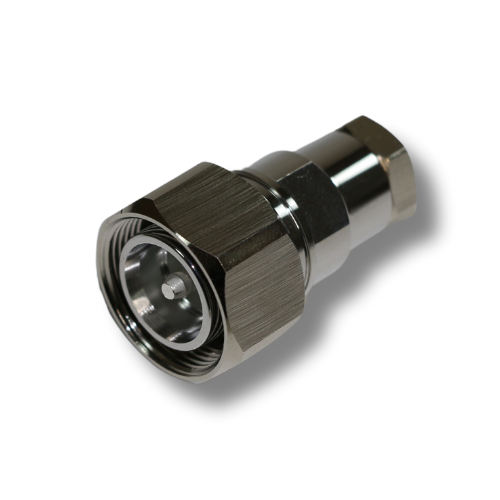

4.3-10 Male Connector for 1/4" Superflexible Cable Field Installed
Part Number:
123-14SFHM
Couldn't load pickup availability
4.3-10 Male 1/4" Superflexible FSJ1-50A Field Installed connector for 1/4" Super flexible annular cable 123-14SF-50 or equivalent. This connector is easily installed on to any manufacturer's 1/4" Superflexible cable including Commscope FSJ1-50A, and RFS SCF14-50J. This field termination design uses two wrenches and a stripping tool to install on to the cable
| CROSS REFERENCE | |
| Alternative To | F1HM-D, 64S1C7-C09N1 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC 3GHz |
| Impedance | 50 ohms |
| Insertion Loss | 0.05 dB |
| PIM | ≤-160(2*43dBm) |
| VSWR | 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to 85°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 40 / 085/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Gender | MALE |
| Inner Conductor | SPRING COPPER |
| Insulation | TPX |
| Mating Cycles | 100 |
| Connector A | 4.3/10 |
| Type | |
|---|---|
| Size | |
| Connection type |
