7/16 DIN Male Right Angle 1/2" Super Flexible Solder Center Solder Body Connector
Couldn't load pickup availability

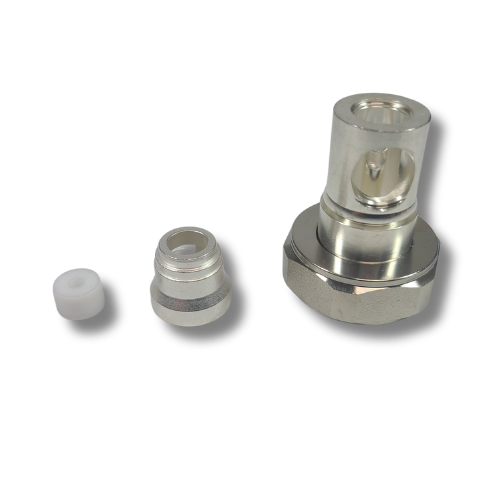

7/16 Din Male Right Angle Solder-Center Connector for 1/2" Superflexible Helical Cable
This high-quality 7/16 Din Male Right Angle solder-center connector is designed for use with 1/2" super flexible helical cables, offering exceptional durability and performance. Specifically engineered for factory installation, it is compatible with 123eWireless' 123-2-50 cable and other 1/2" super flexible cables from leading manufacturers, including Commscope FSJ4-50 and RFS SCF12-50J. Ideal for both indoor and outdoor RF applications, this connector is built to deliver superior signal integrity and long-lasting performance.
Key Features:
- Connector Type: 7/16 Din Male Right Angle Solder-Center
- Compatible Cable Sizes: 1/2" superflexible helical cables
- Factory Installation: Designed for factory assembly on 123eWireless 123-2-50 cable, and other 1/2" superflexible cables (including Commscope FSJ4-50 and RFS SCF12-50J)
- Solder-Center Construction: Provides a secure and reliable electrical connection
- Applications: Suitable for indoor and outdoor RF systems, including telecommunications and broadcast
- Durability: Built for long-term performance and superior signal integrity in demanding environments
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -155 dBc |
| VSWR | < 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -45℃~+85℃ |
| RoHS Compliance | Yes |
| Weather Standard | IP67 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Brass Plating |
| Insulation | PTFE |
| Options | Solder Type |
| Connector A | 7/16 Din Male |
| Type | |
|---|---|
| Size | |
| Connection type |
