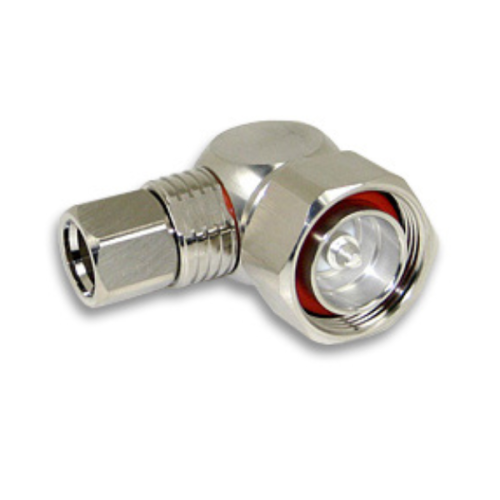

7/16 Din Male Right Angle Field Installed 1/2" Superflexible
Part Number:
123-2DMR
Couldn't load pickup availability
Din 7/16 male (90) field termination connector with captivated cent pin for 1/2" Superflexible Helical cable. This connector is easily installed onto 123eWireless’ 123-2-50 cable and/or any other manufacturer’s 1/2" super flexible cable including Commscope FSJ4-50 and RFS SCF12-50J. This N Female connector uses two wrenches and a stripping tool 123-2AS to install onto the cable.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| ENVIRONMENTAL SPECIFICATIONS | |
| Weather Standard | IEC 60068 40 /085/22 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Options | Field Terminated on 1/2" Superflex cable (FSJ4-50B equivalent) |
| Connector A | 7/6 Male Right Angle |
| Type | |
|---|---|
| Size | |
| Connection type |
