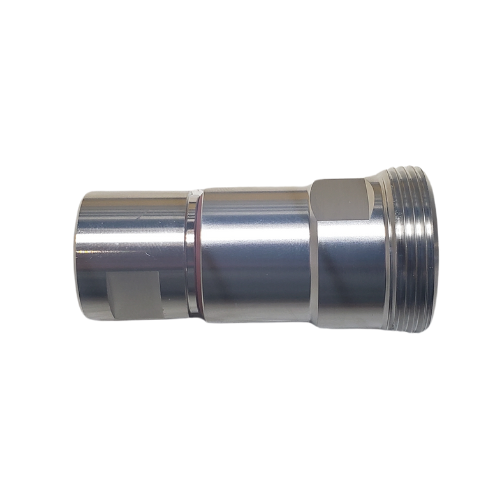

7/16 DIN Female 1/2" Flexible LDF4-50 Field Installed
Part Number:
123-1DF
Contact Us for Pricing & Availability
Couldn't load pickup availability
Din (7/16) Female 1/2" Flexible LDF4-50 Field Installed connector for 1/2" regular flexible annular cable 123-1-50 or equivalent. This connector is easily installed on to any manufacturer's 1/2" flexible cable including Commscope LDF4-50, and RFS. This field termination design uses two wrenches and a stripping tool to install onto the cable
| CROSS REFERENCE | |
| Alternative To | L4TDF-PSA, PPCUXP-DF-12L, 60K1C7-C03N1 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 0.3-3.7GHz |
| Impedance | 50 ohms |
| PIM | <-160 (2*43dBm) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to 85°C |
| Weather Standard | IEC 60068 40 /085/22 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Options | Field Installed onto 1/2" Flexible cable (LDF4-50 equivalent) |
| Connector A | Din (7/16) |
