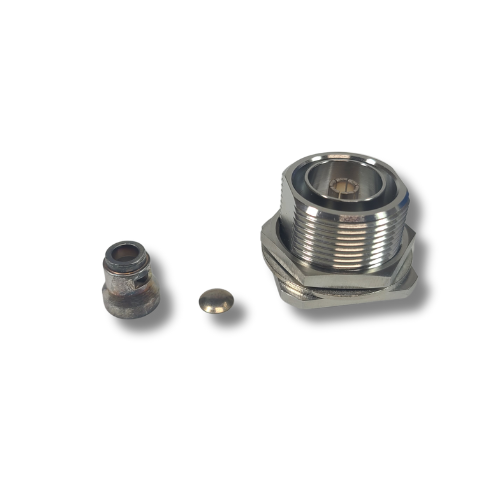

7/16 DIN Female Solder Center Body Connector for 3/8" Superflex Cable
Part Number:
123-38SFDF-S
Contact Us for Pricing & Availability
Couldn't load pickup availability
The 7/16 DIN Female Solder Center Solder Body Connector is designed for use with 3/8" super flexible cables, such as the 123-38SF model or equivalent. This connector is factory-installed onto 3/8" super flexible cables from various manufacturers, including Commscope FSJ1-50A, ensuring a secure and reliable connection for high-performance RF applications. Its solder center and solder body design facilitate a stable, low-loss connection, making it ideal for demanding environments.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Brass Plating Ag>5μm |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | 7/16 DIN Female |
