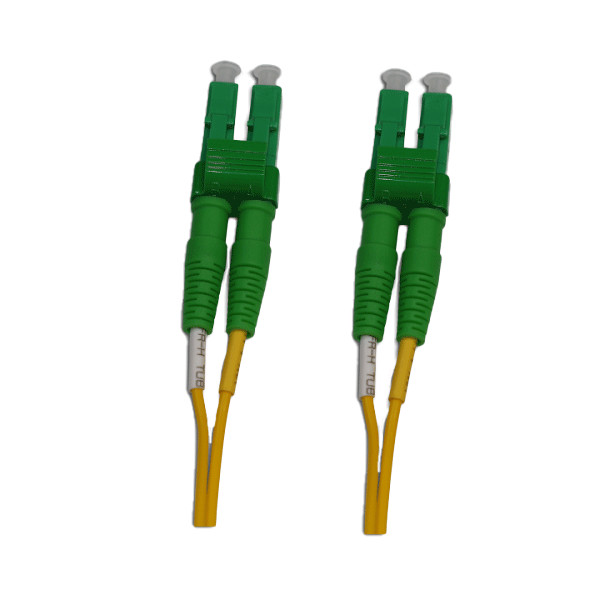

LC/APC to LC/APC Fiber Patch Cord, Duplex, 1.6mm, Single Mode, 5M
Part Number:
123-F1M2-3A399-05M
Couldn't load pickup availability
LC/APC to LC/APC 1.6MM Bend Insensitive Singlemode patchcord. Patch cords are custom made with Corning’s SMF-28 Ultra optical fiber and meet or exceed GR-326 standards. Each assembly is optically tested, bagged, and serialized for traceability and quality purposes.
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Connector A | LC/APC Duplex |
| Connector B | LC/APC Duplex |
| Fiber Count | 2 |
| Fiber Type | SMF-28® Ultra |
| Jacket Color | Yellow |
| Jacket Material | Indoor Riser |
| Outer Diameter | 1.6mm |
| Type | |
|---|---|
| Size | |
| Connection type |
