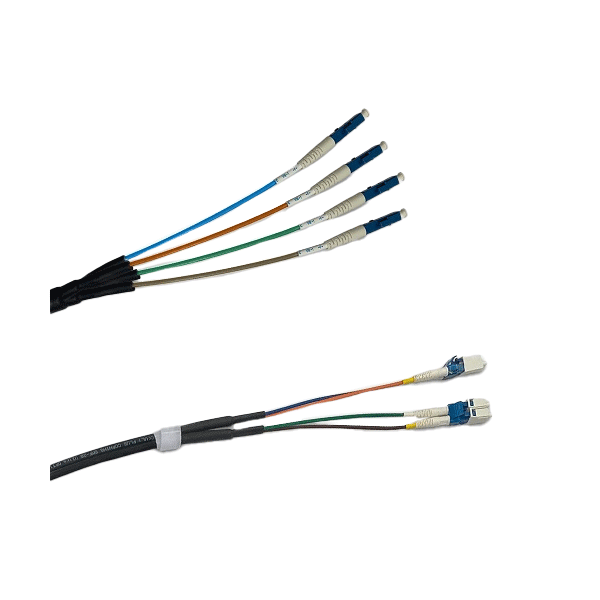

LC/UPC Simplex to LC/UPC Duplex I/O Riser Jumper, Single Mode, 4F, 90ft
Part Number:
123-F3X4-1A467-90F-PS
Couldn't load pickup availability
LC/UPC Simplex to LC/UPC Duplex, Singlemode 4 fiber round distribution indoor/outdoor jumper with a pulling sock for easy installation.
| ATTENUATION | |
| Attenuation @ 1550nm | 0.25 dB/km |
| Attenuation @ 1310nm | 0.40 dB/km |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.5 dB |
| Return Loss | >50 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +70°C |
| Varmint Rating | None |
| PHYSICAL SPECIFICATIONS | |
| Connector A | LC/UPC Simplex |
| Connector B | LC/UPC Duplex w/Pulling Sock |
| Fiber Count | 4 |
| Breakout Length Side A | 6 Inches |
| Breakout Length Side B | 6 Inches |
| Furcation | 2 mm |
| Fiber Type | SMF-28® Ultra |
| Jacket Color | Black |
| Jacket Material | OFNR, I/O |
| Outer Diameter | 5.4mm |
| Size | |
|---|---|
| Connection type |
