By Anritsu

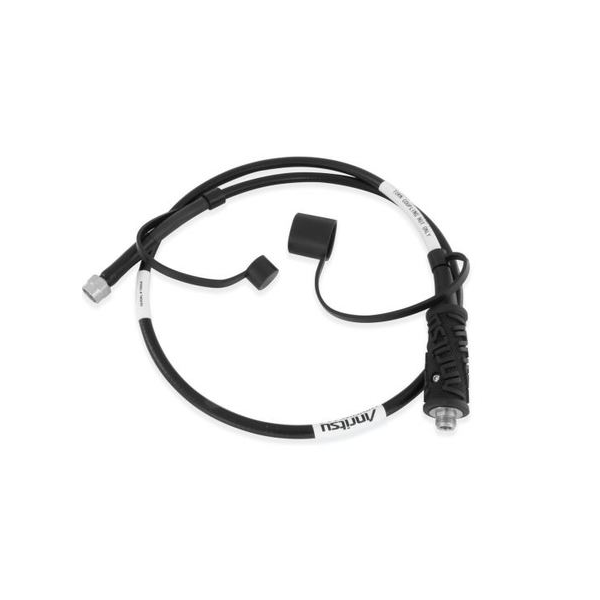

Anritsu: Armored, 1.5 meters, N(m)-DIN Female, 6 GHz, 50 Ohm
Part Number:
15RDFN50-1.5-R
Couldn't load pickup availability
Anritsu: Armored, 1.5 meters, N(m)-DIN Female, 6 GHz, 50 Ohm
| Flex life | >50000 |
| Connector retention | >100 lbs. |
| Minimum Bend Radius | 6.35 cm |
| Mating life cycle | >5000 |
| Armor cruch resistance | >500 lbs. per linear inch |
| Temperature range | -40°C / +80°C |
| Electrical Specifications | |
|---|---|
| Frequency | 6 GHz |
| Impedance | 50 Ohm |
| Velocity of propagation | 70% |
| Shielding effectiveness | >80 dB |
| Phase stability | ±4° |
| VSWR Max | 1.29:1 |
| Attenuation @ +25°C | 2.1 dB (1.5 m), 3.9 dB (3.0 m) |
| Power Handling @ +25°C | 100 w |
| Size | |
|---|---|
| Wattage |
