By CommScope
CommScope: 10/11GHz, Dual Polarized, 3ft, High Performance D
Part Number:
VHLPX2-11W-E3F
Couldn't load pickup availability

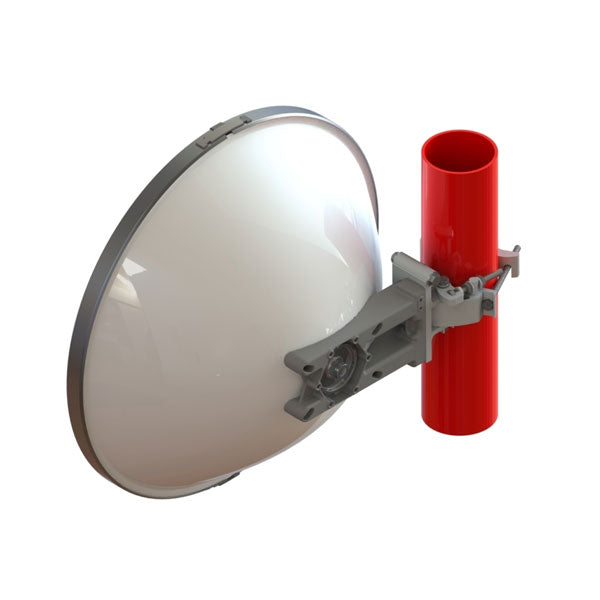

CommScope: 10/11GHz, Dual Polarized, 3ft, High Performance Dish Antenna
- 10.000-11.700 GHz
- Antenna Type: VHLPX - ValuLine® High Performance Low Profile Antenna, dual polarized
- Gain, Low Band: 33.7 dBi
- Gain, Mid Band: 34.5 dBi
- Gain, Top Band: 35.2 dBi
- Boresite Cross Polarization Discrimination (XPD): 30 dB
- Front-to-Back Ratio: 61 dB
- Beamwidth, Horizontal: 3.3 °
- Beamwidth, Vertical: 3.3 °
- Return Loss: 17.7 dB
- VSWR: 1.3
| Size | |
|---|---|
| Frequency range |
