CommScope: 12-Port Sector Antenna, 2x 698–798, 2x 824-896 an

CommScope: 12-port sector antenna, 2x 698–798, 2x 824-896 and 8x 1695–2360 MHz, 65° HPBW, 3x RET and low bands have diplexers

• Interleaved dipole technology providing for attractive, low wind load mechanical package
• Provides support for future Band 14 operations
• The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
• Antenna Type: Sector
• Band: Multiband
• Color: Light Gray (RAL 7035)
• Grounding Type: RF connector inner conductor and body grounded to reflector and
  mounting bracket
• Performance Note: Outdoor usage    |   Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN

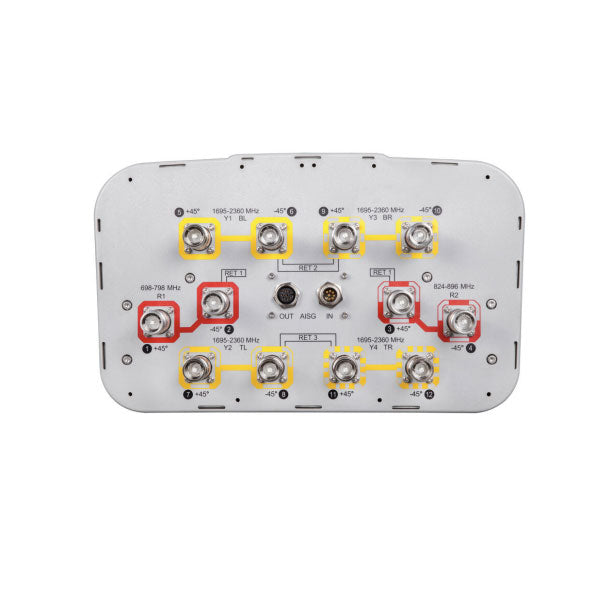

• RF Connector Interface: 4.3-10 Female
