By CommScope
CommScope: 138-150MHz 6 dB 4-Bay Dipole Omni Base Station An
Part Number:
DB224-E
Couldn't load pickup availability

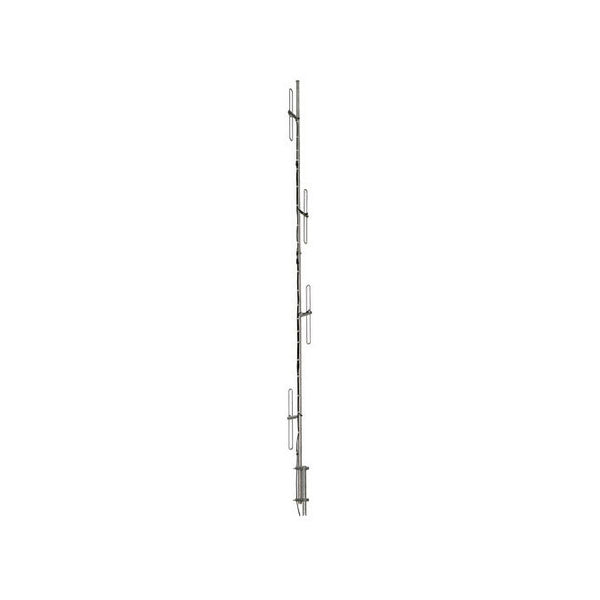

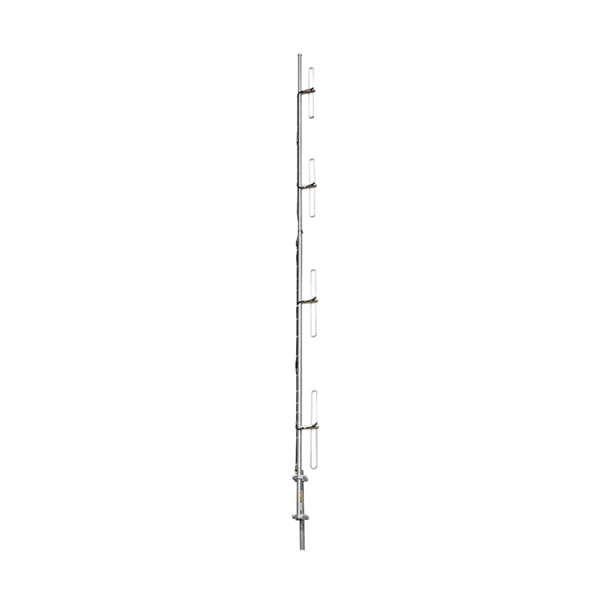

CommScope: 138-150 MHz 6 dB 4-Bay Dipole Omni Base Station Antenna
- 1-port omni exposed dipole antenna, 138–150 MHz, 360° HPBW, fixed electrical tilt
- Antenna Type: Omni
- Band: Single band
- Impedance: 50 Ohms
- Polarization: Vertical
- Gain: 6.0 dBd | 8.1 dBi
- Beamwidth, Vertical: 16.0°
- Beamwidth, Horizontal: 360°
- Input Power: 500 W
- Color: Silver
- Grounding Type: RF connector inner conductor and body grounded to reflector and mounting bracket
- Performance Note: Outdoor usage
- Radiator Material: Aluminum
- RF Connector Interface: N Male
- RF Connector Location: Bottom
- RF Connector Quantity, high band: 0
- RF Connector Quantity, mid band: 0
- RF Connector Quantity, low band: 1
- RF Connector Quantity, total: 1
| Antenna-type |
|
|---|---|
| Frequency range | |
| Connection type | |
| Wattage | |
| Port count | 1 |
