By CommScope
CommScope: 8-port multiband sector antenna featuring 4 ports
Part Number:
FFVV-65C-R2-UPM
Couldn't load pickup availability
CommScope: 8-port multiband sector antenna featuring 4 ports for 617-894 MHz and 4 ports for 1695-2690
- Antenna Type: Sector
- Band: Multiband
- Color: Light Gray (RAL 7035)
- Grounding Type: RF connector inner conductor and body grounded to reflector and mounting bracket
- Outdoor usage
- Radome Material: Fiberglass, UV resistant
- Reflector Material: Aluminum

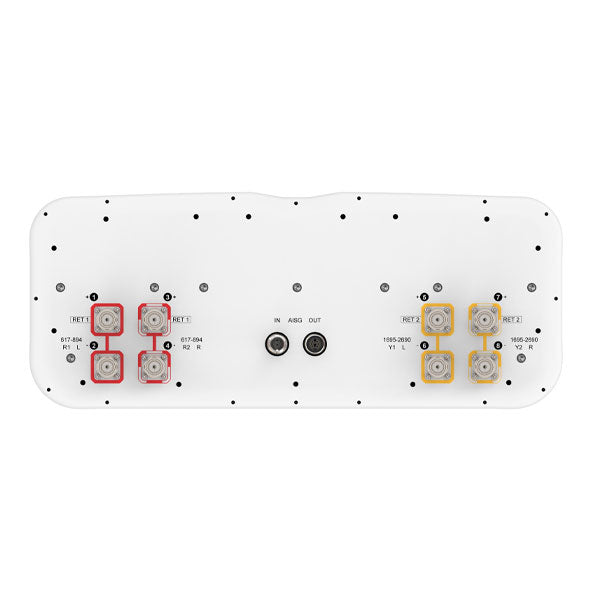

- RF Connector Interface: 4.3-10 Female
- RF Connector Location: Bottom
- RF Connector Quantity, high band: 0
- RF Connector Quantity, mid band: 4
- RF Connector Quantity, low band: 4
- RF Connector Quantity, total: 8
- Impedance: 50 ohm
- Operating Frequency Band: 1695 – 2690 MHz | 617 – 894 MHz
- Polarization: ±45°
- Total Input Power, maximum: 900 W @ 50 °C
| Antenna-type |
|
|---|---|
| Frequency range | |
| Connection type | |
| Port count | 8 |
