By CommScope
CommScope: 10/11GHz, Dual Polarized, 3ft, High Performance D
Part Number:
VHLPX3-11W-E3E
Couldn't load pickup availability

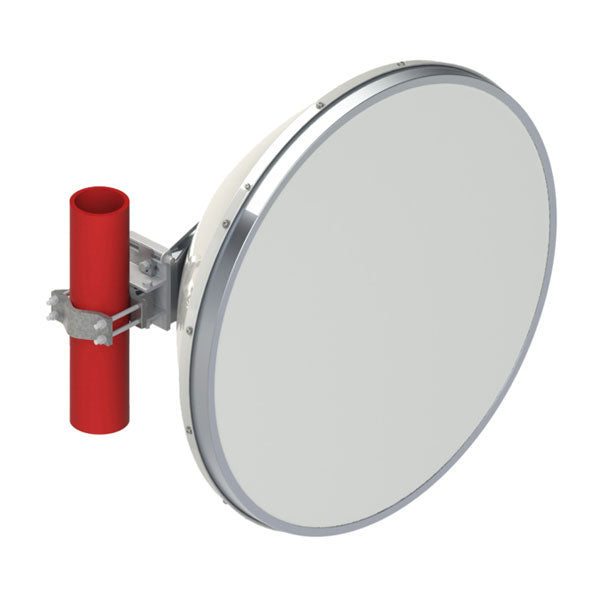

CommScope: 10/11GHz, Dual Polarized, 3ft, High Performance Dish Antenna
- Microwave antenna
- VHLPX - ValuLine® High Performance Low Profile Antenna, dual polarized
- Operating Frequency Band: 10.125 – 11.700 GHz
- Gain, Low Band: 37.8 dBi
- Gain, Mid Band: 38.4 dBi
- Gain, Top Band: 39 dBi
- Boresite Cross Polarization Discrimination (XPD): 30 dB
- Front-to-Back Ratio: 64 dB
- Beamwidth, Horizontal: 2 °
- Beamwidth, Vertical: 2 °
- Return Loss: 17.7 dB
- VSWR: 1.3
- Radiation Pattern Envelope Reference (RPE): 7177A | 7178A
| Size | |
|---|---|
| Frequency range |
