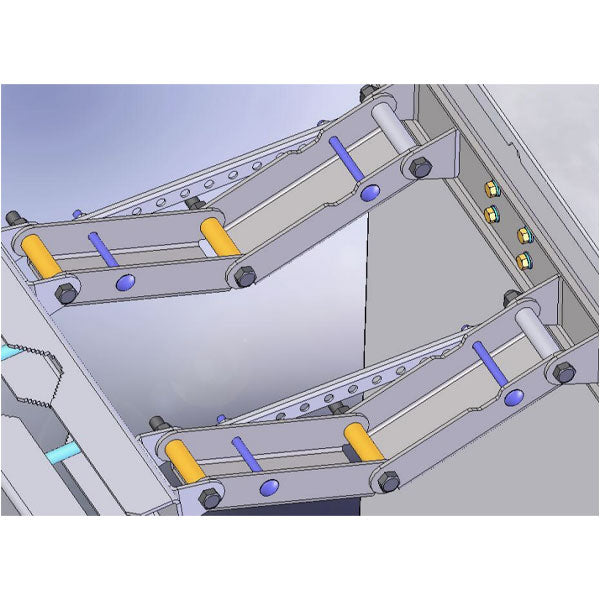

RFS: Mounting Kit APM40-5E

RFS: Mounting Kit for Antenna

• Beam sliding tilt mount for mechanical tilt
• Pipe diameter: 60-120mm
• Mechanical downtilt: 0~9° for 2.0m~2.6m antennas
• Material: Aluminum, Galvanized Steel

Kit Includes:

• Clamp front 800Mhz (2)
• Clamp rear 800Mhz (2)
• M12-200, Galvanized, DIN603 / ISO8677, class 8.8 (4)
• Screw H M12x110 CS 35K 8.8 GVRO ISO4017 (8)
• Washer FL 13x24x2.5 CS 200HV GVRO GB97 (12)
• Washer SP 12x3.5 65Mn 200HV GVRO GB7244 (12)
• Nut H M12x19x10 CS 35K 8 GVRO DIN934 (12)
• Stub for scissor (4)
• Downtilt scissor (2)
• Downtilt beam (2)
• Mechanical downtilt indicator 800Mhz 2.6m (2)
• Stub Spacer 3mm (2)
• M8-100, Galvanized, ISO8677, class 4.8 (4)
• SPRING LOCK WASHER A8 DIN127 A2 (4)
• FLAT WASHER DIN125 8.4 A2 (FRTR) (4)
• M8X1,25 HEX NUT STL GALV (4)
• Spacer for bottom mounting (4)

Tools Required:

• 13mm, 18mm and 19mm (3/4") AF Spanner or Socket (3/8” drive recommended)
• Torque wrench

Tightening Torque Values:

• Diameter: M12
  • Pitch: 1.75mm
  • Bolt Tension (kN): 23.8
  • Torque (Nm): 60
• Diameter: M8
  • Pitch: 1.25 mm
  • Bolt Tension (kN): 9.5
  • Torque (Nm): 16
