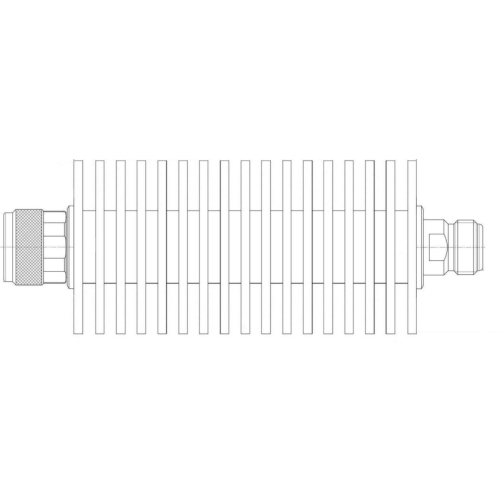

N Male to N Female 20dB 100 Watts Attenuator
Part Number:
123-N20DB100W
Couldn't load pickup availability
N (M) to N (F) 20dB 100 Watts Attenuator Fixed attenuators are used to lower voltage, dissipate power, and to improve impedance matching.
- Wide Frequency Band DC 6GHz
- 2G/3G/4G/LTE Coverage
- Low attenuation accuracy
- Widely used for In building Solutions
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | 20 ±1.2 |
| Average Power | 100w@20C |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| VSWR | ≤1.30 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30C ~+70C |
| PHYSICAL SPECIFICATIONS | |
| Connector A | N Male |
| Connector B | N Female |
| Attenuation | |
|---|---|
| Connection type | |
| Wattage |
