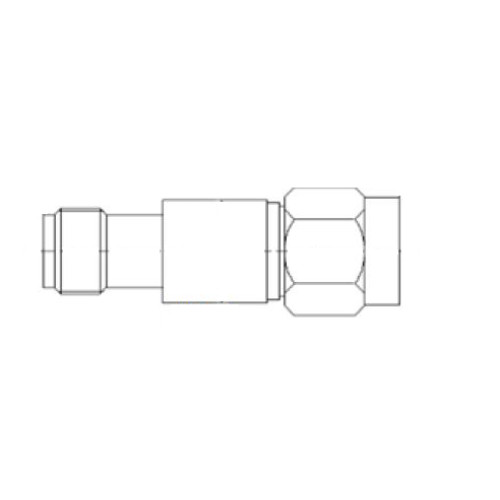

SMA Male to SMA Female 20dB 2 Watts Attenuator
Part Number:
123-S20DB2W
Couldn't load pickup availability
SMA (M) to SMA (F) 20 dB 2 Watts Attenuator. Fixed attenuators are used to lower voltage, dissipate power, and to improve impedance matching.
- Wide Frequency Band DC-6GHz
- 2G/3G/4G/LTE Coverage
- Low VSWR
- Widely used for In-building Solutions
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | 20dB ±1.3 |
| Average Power | 2 W |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| VSWR | ≤1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40C ~+80C |
| PHYSICAL SPECIFICATIONS | |
| Connector A | SMA Male |
| Connector B | SMA Female |
| Attenuation | |
|---|---|
| Connection type | |
| Wattage |
