By Square D

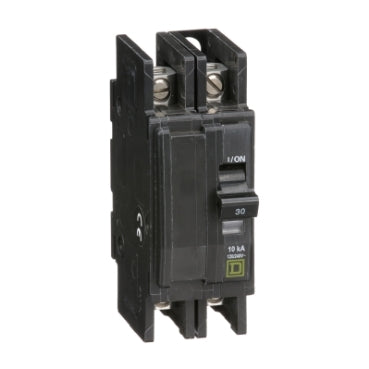

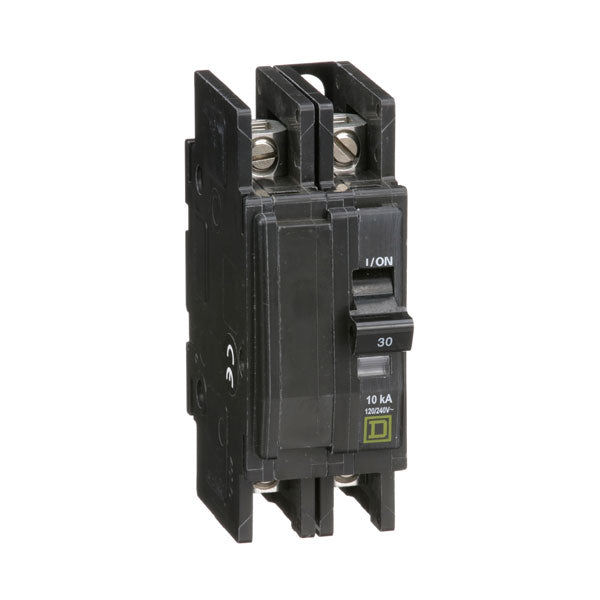

Square D: 2 Pole Circuit Breaker, 30A, 120/240VAC, 48VDC
Part Number:
QOU230
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Unit price
Couldn't load pickup availability
Square D: Mini circuit breaker, QOU, 30A, 2 pole, 120/240VAC, 10kA
| Product or Component Type | Miniature circuit-breaker |
|---|---|
| Range of Product | QOU |
| Circuit breaker type | Standard |
| Circuit breaker application | HACR rated |
| Line Rated Current | 30 A |
|---|---|
| Number of Poles | 2P |
| Short-circuit current | 10 kA |
| Interrupt Rating | 10 kA 120/240 V AC 10 kA 120 V AC |
| Electrical connection | Slotted box lugs, line side Slotted box lugs, load side |
| [Ue] rated operational voltage | 120/240 V AC 120 V AC 48 V DC |
| Mounting Mode | Unit mount |
| AWG gauge | AWG 14...AWG 2 aluminium/copper |
| Height | 4.05 in (102.87 mm) |
| Width | 1.5 in (38.1 mm) |
| Depth | 2.95 in (74.93 mm) |
| Tightening torque | 45 lbf.in (5.08 N.m) (AWG 14...AWG 2) |
