By Square D

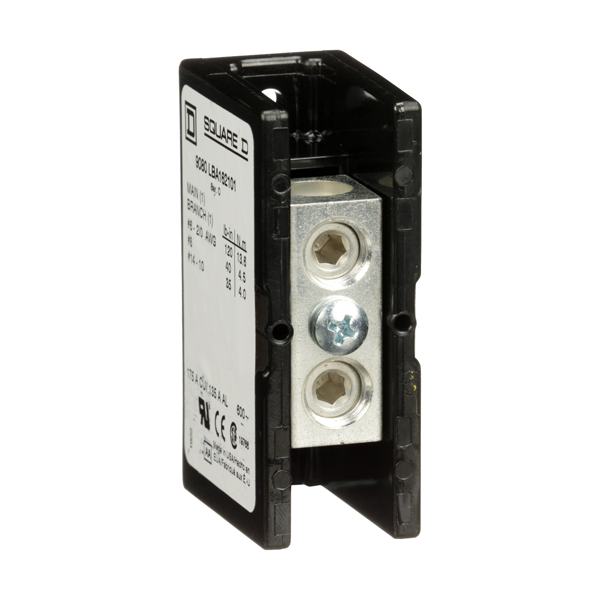

Square D: Power Distribution Block, Linergy, 1 Pole, 1 Line,
Part Number:
9080LBA162101
Couldn't load pickup availability
Square D: Power Distribution Block, Linergy, 1 Pole, 1 Line, 1 Load, 175A Cu, 135A Al, 600V
| Range | 9080LB |
|---|---|
| Product | Power Distribution Block |
| Current Rating | 175 A copper 135 A aluminium |
| Short Circuit Current Rating | 65 kA |
| Voltage Rating | 600 V AC/DC |
|---|---|
| Mounting Type | Surface mount |
| Number of poles | 1 |
| Terminals per Pole | 1 line 1 load |
| Wire Size | Line 2, AWG 14...AWG 2/0, copper or aluminium Load 1, AWG 14...AWG 2/0, copper or aluminium |
| Electrical Connection | Tin plated aluminum lugs |
| SCCR | 65 kA UL 508 A |
| Ambient air temperature for operation | -40…302 °F (-40…150 °C) |
| Block Material | Phenolic: block |
| Terminal Tightening Torque | Line lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Line lug 35 lbf.in (4.0 N.m) AWG 14 copper Load lug 40 lbf.in (4.5 N.m) AWG 8 copper or aluminium Load lug 35 lbf.in (4.0 N.m) AWG 12...AWG 10 copper or aluminium Load lug 35 lbf.in (4.0 N.m) AWG 14 copper Line lug 120 lbf.in (13.6 N.m) AWG 6...AWG 2/0 copper or aluminium Load lug 120 lbf.in (13.6 N.m) AWG 6...AWG 2/0 copper or aluminium |
| Wire stripping length | Line: 0.5 in (12.7 mm) Load: 0.5 in (12.7 mm) |
| Height | 2.88 in (73.15 mm) |
| Width | 1.13 in (28.70 mm) |
| Depth | 1.78 in (45.21 mm) |
| End Barrier | 9080LB21 |
| Certifications | CSA file 70361 class 6228 01 CE UL recognized E60616 CCN XCFR2 |
|---|
| Type | |
|---|---|
| Amp |
