CommScope: 7/16 DIN Male Right Angle Positive Stop for 1/2"

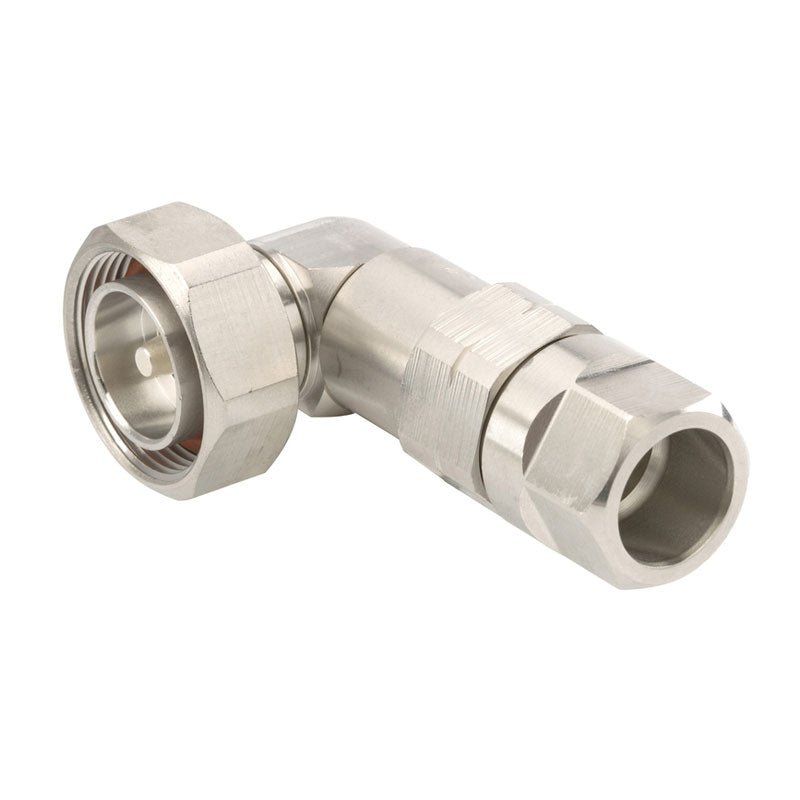

CommScope: 7/16 DIN Male Right Angle Positive Stop™ for 1/2 in LDF4-50A

• Connector Impedance: 50 ohm
• Operating Frequency Band: 0 – 7500 MHz
• Cable Impedance: 50 ohm
• 3rd Order IMD, typical: -120 dBm @ 910 MHz
• 3rd Order IMD Test Method: Two +43 dBm carriers
• RF Operating Voltage, maximum (vrms): 884.00 V
• dc Test Voltage: 2500 V
• Outer Contact Resistance, maximum: 1.50 mOhm
• Inner Contact Resistance, maximum: 0.80 mOhm
• Insulation Resistance, minimum: 5000 MOhm
• Average Power:1.0 kW @ 900 MHz
• Peak Power, maximum: 15.60 kW
• Insertion Loss, typical: 0.05 dB
• Shielding Effectiveness: -110 dB
