By 123eWireless
DIN Male 1/2" Superflexible Helical Field Terminated
Part Number:
123-2DM
Couldn't load pickup availability

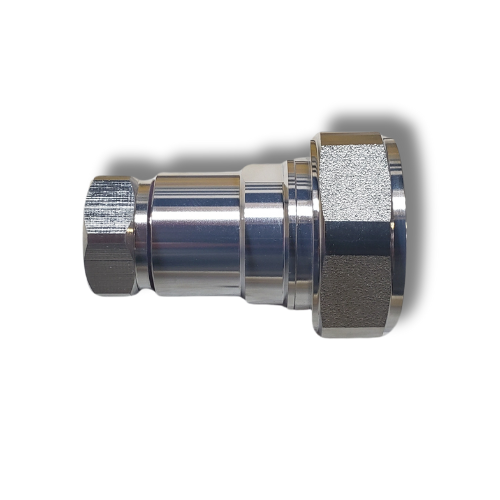

Din 7/16 male field termination connector with captivated cent pin for 1/2" Superflexible Helical cable. This connector is easily installed onto 123eWireless’ 123-2-50 cable and/or any other manufacturer’s 1/2" super flexible cable including Commscope FSJ4-50 and RFS SCF12-50J. This connector uses two wrenches and a stripping tool 123-2AS to install onto the cable.
| CROSS REFERENCE | |
| Alternative To | 15560451 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| ENVIRONMENTAL SPECIFICATIONS | |
| Weather Standard | IEC 60068 40 /085/22 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Options | Field Terminated |
| Connector A | 7/6 Male |
| Type | |
|---|---|
| Size | |
| Connection type |
