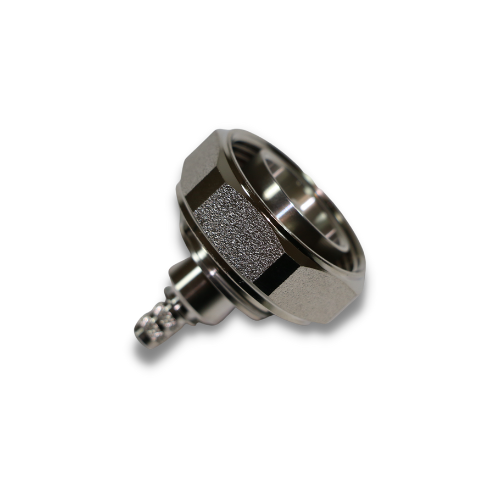

DIN Male LMR 240 Crimp
Part Number:
123-14DM
Couldn't load pickup availability
The DIN Male LMR-240 Crimp Connector (123-14DM) is a high-performance coaxial connector specifically engineered for use with LMR-240 cables. Designed to provide reliable and durable connections, this DIN Male connector utilizes both crimp and solder techniques, ensuring strong mechanical and electrical performance across various RF and microwave applications. Its nickel-plated body and gold-plated center contact maximize corrosion resistance and signal fidelity, making it ideal for high-frequency setups.
| CROSS REFERENCE | |
| Alternative To | PE44994, 3777, TC-240-716M |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC 0.8-3GHz |
| Impedance | 50 ohms |
| Insertion Loss | 0.05 dB |
| VSWR | 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to 155°C |
| Weather Standard | IEC 60068 40 /085/22 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Phosphorus-Bronze Silver Plating |
| Insulation | PTFE |
| Mating Cycles | 500 |
| Options | Field Installed |
| Connector A | Din (7/16) |
| Type | |
|---|---|
| Connection type |
