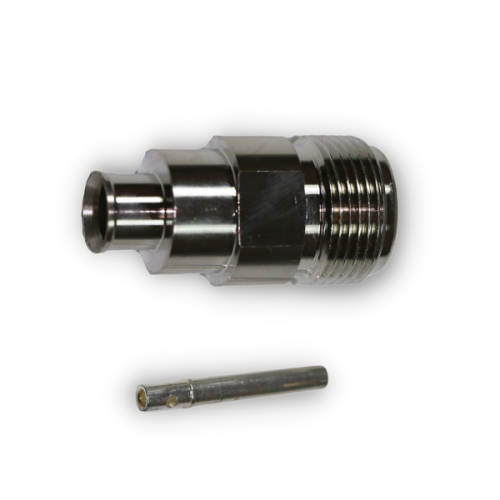

N Female Solder Center Body Connector for Flex Form 0.27" Cable
Part Number:
123-14FFNFS
Couldn't load pickup availability
The N Female Solder Center Solder Body Connector is designed for Flex Form 0.27" cables, such as the 123-14FF-50 model or equivalent. This connector is factory-installed onto Flex Form 0.27" cables from other manufacturers, including Commscope FSJ1-50A, providing a reliable and low-loss connection for high-performance RF applications. Its solder center and solder body construction ensure a stable and durable connection, ideal for demanding environments where signal integrity is crucial.
N Female Solder Center Solder Body Connector
- Application: Connector for Flex Form 0.27" cable (model 123-14FF-50 or equivalent).
-
Installation: This connector is factory-installed onto 1/4" super flexible cables from other manufacturers, including:
- Commscope
-
FSJ1-50A
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to ~155°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 55 / 155/ 56 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | N Female |
| Type | |
|---|---|
| Size | |
| Connection type |
