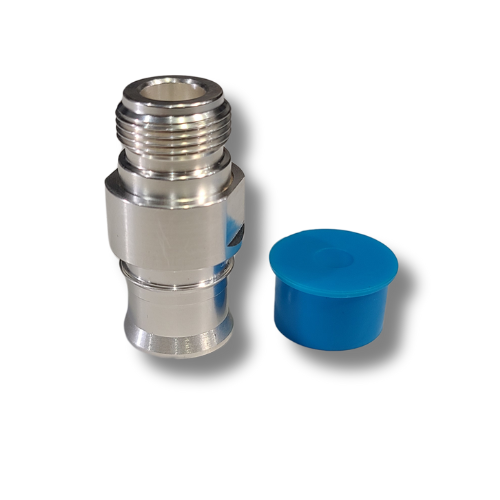

N Female Solder Center Solder Body Connector for 1/2" Standard Flexible Cable
Part Number:
123-1NFS
Couldn't load pickup availability
N female solder center solder body connector for 1/2" regular flexible annular cable 123-1-50 or equivalent. This connector is factory installed onto any other manufacturers 1/2" flexible cable including Commscope LDF4-50, and RFS LCF12-50J-P7.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to ~155°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | N |
| Type | |
|---|---|
| Size | |
| Connection type |
