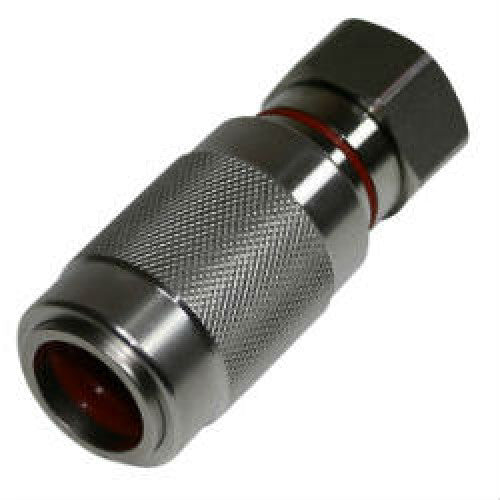

N Male Compression Connector for 1/2" Flexible Cable
Part Number:
123-1NM-C
Couldn't load pickup availability
N Male Compression connectors are the easiest connectors to install in the field. Simply strip the 1/2" Flexible cable push the connector onto the cable and with the RIGID tool Compress into place. Compression Connectors by 123eWireless are designed for LOW PIM applications of <-160 (2*43dBm)
| CROSS REFERENCE | |
| Alternative To | HL4RP-50A, HL4RPV-50 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| Insertion Loss | ≤ 0.05 |
| PIM | <-160 |
| VSWR | ≤1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40 ~+85 ℃ ℃ |
| Weather Standard | IP67 |
| PHYSICAL SPECIFICATIONS | |
| Gender | MALE |
| Options | Compression |
| Connector A | N Type |
| Type | |
|---|---|
| Size | |
| Connection type |
