By 123eWireless

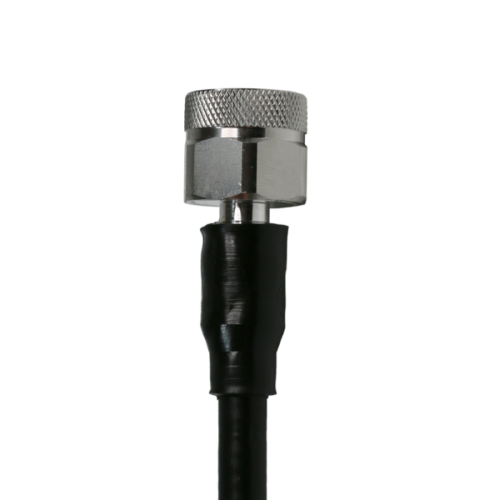

N Male Solder Center Body Connector for 1/4" Super Flexible Cable
Part Number:
123-14SFNMS
Couldn't load pickup availability
N Male Solder Center Solder Body Connector
- Application: Connector for 1/4" Super flexible cable (model 123-14SF-50 or equivalent).
-
Installation: This connector is factory-installed onto 1/4" super flexible cables from other manufacturers, including:
- Commscope
- FSJ1-50A
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to ~85°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Spring Copper Plating Ag>5μm |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass Plating Ag>5μm |
| Connector A | N Male |
| Type | |
|---|---|
| Size | |
| Connection type |
