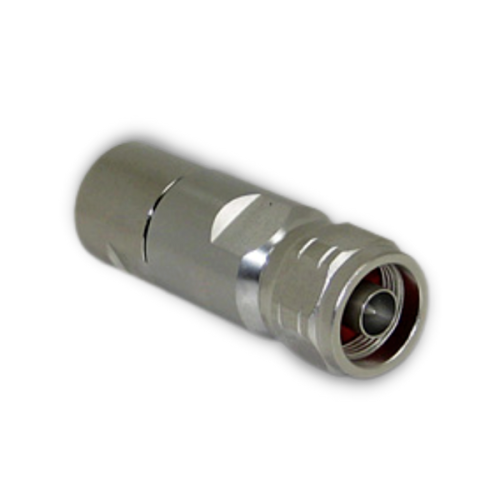

N Male Solder Center Solder Body Connector for 1/2" Standard Flexible Cable
Part Number:
123-1NMS
Couldn't load pickup availability
N Male solder center solder body connector for 1/2" regular flexible annular cable 123-1-50 or equivalent. This connector is factory installed onto any other manufacturers 1/2" flexible cable including Commscope LDF4-50, and RFS LCF12-50J-P7.
Installation Method:
- Center Pin: Solder attachment
- Body Connection: Solder attachment
Impedance:
50 Ohms
Frequency Range:
Supports high-frequency signals with precision and minimal attenuation
Applications:
- RF communication systems
- Cellular base stations
- Antenna connections
- High-frequency testing setups
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Brass, Silver Plated |
| Insulation | PTFE |
| Options | Solder Type |
| Outer Conductor | Brass, CuSnZn Plated |
| Connector A | N Male |
| Type | |
|---|---|
| Size | |
| Connection type |
