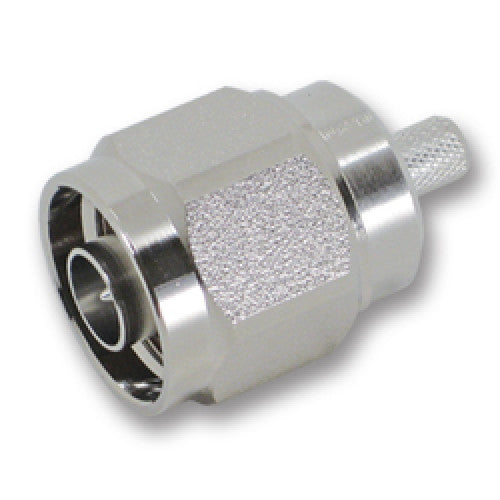

N Plug Field Termination LMR 240
Part Number:
66-143
Couldn't load pickup availability
The N Male LMR-240 Field Terminated Connector is a high-performance coaxial connector specifically engineered for use with LMR-240 cables. Designed to provide reliable and durable connections, this N Male connector ensures strong mechanical and electrical performance across various RF and microwave applications.
Key Features:
- Impedance: 50 Ohms, tailored for high-frequency and low-loss applications.
- Applications: Suitable for RF applications in cellular networks, radio communications, and antenna systems, where high-quality signal performance is essential.
- Temperature Range: Reliable operation between -40°C and +85°C, suitable for various environmental conditions.
- Compliance: RoHS compliant for environmentally responsible use
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC 0.8-3GHz |
| Impedance | 50 ohms |
| Insertion Loss | 0.05 dB |
| VSWR | 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to 155°C |
| Weather Standard | IEC 60068 40 /085/22 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Phosphorus-Bronze Silver Plating |
| Insulation | PTFE |
| Mating Cycles | 500 |
| Options | Field Installed |
| Connector A | N |
| Type | |
|---|---|
| Connection type |
