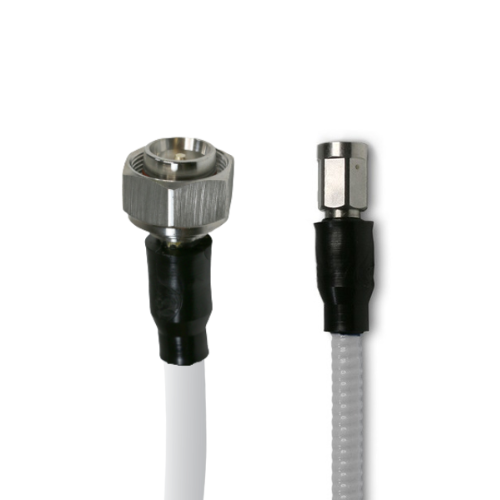

4.3-10 Male to Nex10 Male 1/4" Superflex Plenum Low PIM Jumper, 10M
Part Number:
123-14SFPHMXM-10M-P
Contact Us for Pricing & Availability
Couldn't load pickup availability
4.3-10 Male to Nex10 Male 1/4" Superflex Plenum Low PIM Jumper, 10M
| CROSS REFERENCE | |
| Alternative To | PTS1P-XMHM |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50±2 Ohm |
| PIM | -168 dBc |
| Return Loss | ≤-30dB @3GHz, ≤-24dB @6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +80°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Inner Conductor | Copper clad aluminum wire |
| Insulation | PE Spline |
| Maximum Bending Radius | 1.18" |
| Outer Conductor | Helical corrugated copper |
| Connector A | 4.3/10 Male |
| Connector B | Nex10 Male |
| Jacket Color | White |
| Jacket Material | halogenated fire retardant white jacket to meet UL CATVP/CMP rating. |
| Outer Diameter | 0.307in (7.8mm) |
