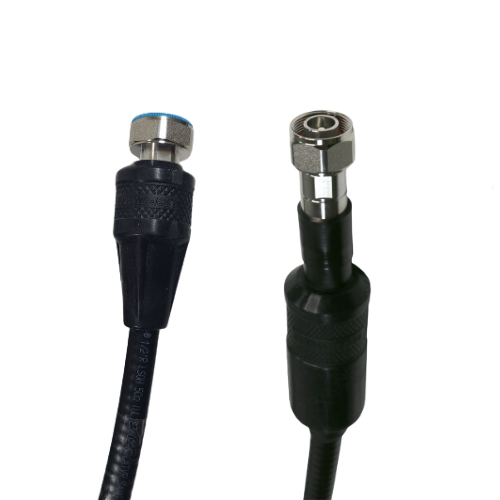

7/16 DIN Male to 4.1/9.5 Mini DIN Male w/ EasyBoot 1/2" Flexible (LDF4-50A) Low PIM Jumper, 20ft
Part Number:
123-1DMMDM-20-P-EB
Couldn't load pickup availability
7/16 DIN Male to 4.1/9.5 Mini DIN Male w/ EasyBoot 1/2" Flexible (LDF4-50A) Low PIM Jumper, 20ft
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50±2 Ohm |
| PIM | -156dBc |
| Return Loss | ≤-30dB @3GHz, ≤-24dB @6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +80°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Inner Conductor | Copper clad aluminum wire |
| Insulation | PE Spline |
| Maximum Bending Radius | 1.18" |
| Outer Conductor | Helical corrugated copper |
| Connector A | 7/16 Din Male |
| Connector B | 4.1/9.5 Mini Din Male Easy Boot |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 0.307in (7.8mm) |
| Type | |
|---|---|
| Size | |
| Connection type |
