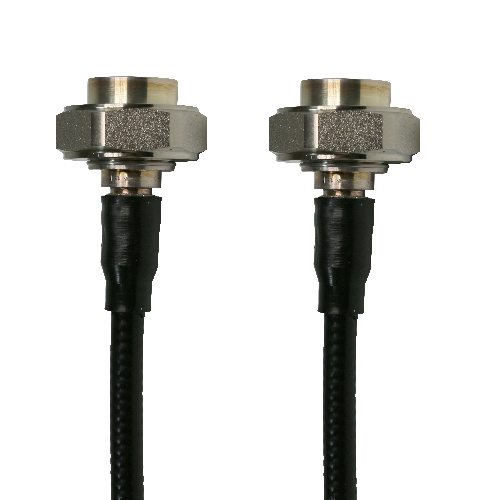

7/16" DIN Male to 7/16" DIN Male 1/4" Superflex Low PIM Jumper, 3M
Part Number:
123-14SFDMDM-03M-P
Contact Us for Pricing & Availability
Couldn't load pickup availability
7/16" DIN Male to 7/16" DIN Male 1/4" Superflex Low PIM Jumper, 3M
| CROSS REFERENCE | |
| Alternative To | F1A-DMDM |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50 Ohm |
| PIM | -168 dBc |
| Return Loss | ≤-27dB @3GHz, ≤-24dB @6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Maximum Bending Radius | 0.78" |
| Connector A | 7/16" DIN Male |
| Connector B | 7/16" DIN Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 0.252in |
