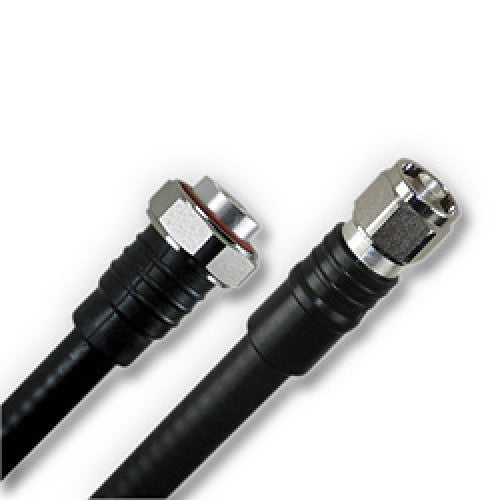

7/16 DIN Male to N Male 1/2" Superflex Low PIM Jumper, 1M
Part Number:
123-2DMNM-01M-P
Contact Us for Pricing & Availability
Couldn't load pickup availability
7/16 DIN Male to N Male 1/2" Superflex Low PIM Jumper, 1M
| CROSS REFERENCE | |
| Alternative To | F4-PNMDM-1M, F4-PNMDM |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50 Ohm |
| PIM | -171 dBc IEC 62037-2 |
| Return Loss | -26dB @3GHz; -23dB @6GHz |
| VSWR | <1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to +85°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Dielectric Material | Foam PE |
| Maximum Bending Radius | 2.00" |
| Outer Conductor | Helically corrugated copper |
| Connector A | 7/16 DIN Male |
| Connector B | N Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | <0.53in |
