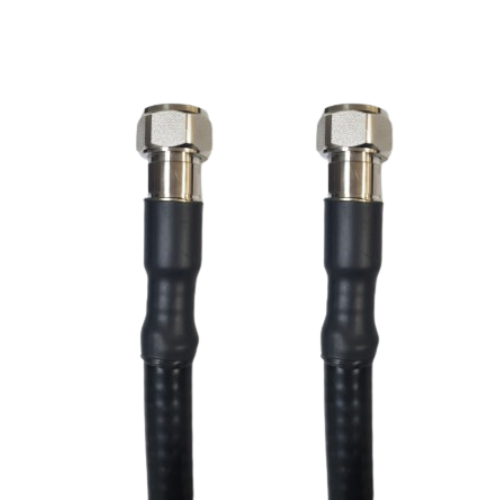

  5. Mini Din 4.1/9.5 Male to Mini Din 4.1/9.5 Male 1/2" Flexible Low PIM Jumper, 20ft
By 123eWireless

Mini Din 4.1/9.5 Male to Mini Din 4.1/9.5 Male 1/2" Flexible Low PIM Jumper, 20ft

Part Number: 123-1MDMMDM-20-P
Contact Us for Pricing & Availability

Mini Din 4.1/9.5 Male to Mini Din 4.1/9.5 Male 1/2" Flexible Low PIM Jumper, 20ft

CROSS REFERENCE
Alternative To L4A-KMKM-6-P-SGW
ELECTRICAL SPECIFICATIONS
Frequency Range 600-3000 Mhz
Impedance 50 Ohm
PIM -165 dBc IEC 62037
Return Loss -30 db
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -40°C to +85°C
Weather Standard IEC 68 40/85/ 21
PHYSICAL SPECIFICATIONS
Maximum Bending Radius 2.00"
Connector A 4.1/9.5 Din Male
Connector B 4.1/9.5 Din Male
Jacket Color Black
Jacket Material PE - UV Resistant
Outer Diameter .63in

Coaxial Jumpers
Contact Us for Pricing & Availability
Type 1/2" Flexible Cable
Size 20ft
Connection type Mini DIN 4.1/9.5 Male to Mini DIN 4.1/9.5 Male
