By 123eWireless

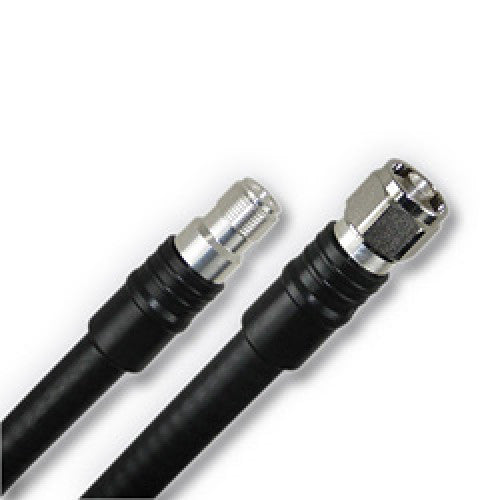

N Female to N Male 1/2" Flexible Low PIM Jumper, 100ft
Part Number:
123-1NFNM-100-P
Contact Us for Pricing & Availability
Couldn't load pickup availability
N Female to N Male 1/2" Flexible Low PIM Jumper, 100ft
| CROSS REFERENCE | |
| Alternative To | NMNFL12, L4A-PNMNF |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50 Ohm |
| PIM | -165 dBc IEC 62037 |
| Return Loss | -30 db |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Maximum Bending Radius | 2.00" |
| Connector A | N Female |
| Connector B | N Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | .63in |
Contact Us for Pricing & Availability
| Type | |
|---|---|
| Size | |
| Connection type |
If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible.
