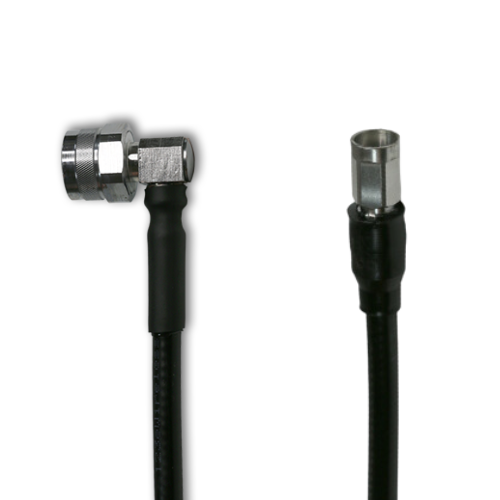

N Male Right Angle to Nex10 Male 1/4" Superflex Low PIM Jumper, 10ft
Part Number:
123-14SFNMRXM-10-P
Contact Us for Pricing & Availability
Couldn't load pickup availability
N Male Right Angle to Nex10 Male 1/4" Superflex Low PIM Jumper, 10ft
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50 Ohm |
| PIM | -165 dBc |
| Return Loss | ≤-27dB @3GHz, ≤-25dB @6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Maximum Bending Radius | 0.78" |
| Connector A | N Male Right Angle |
| Connector B | Nex10 Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 0.252in |
