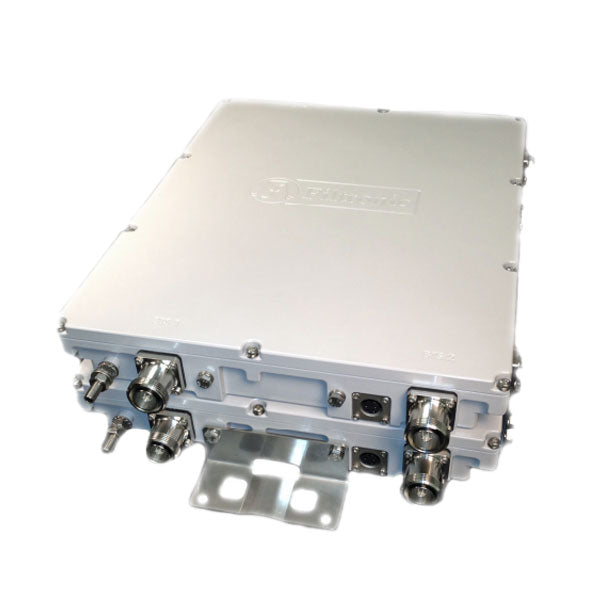

Filtronic: Twin AWS Contiguous Block Same Band Combiner

Filtronic: Twin AWS Contiguous Block Same Band Combiner

• Combines Two Contiguous AWS Blocks w/Low Loss
• Duplexed Inputs for Universal Installation
• Low WCDMA & LTE EVM (≤ 5.5% & 1% respectively)
• Low Loss (≤ 0.80 dB typical)
• Good TX-RX Isolation (≥ 30 dB)
• DC/AISG Configuration with External Plug
• IP67 Rated for Indoor or Outdoor Use
• Compact Size - Only One Unit Needed per Sector
• BTS1 (C/D/E/F1-blocks): 1730.25 - 1749.75 MHz & 2130.25 - 2149.75 MHz
• BTS2 (F2-block): 1750.25 - 1754.75 MHz & 2150.25 - 2154.75 MHz
• 7/16 DIN Female, Long Neck (x3)
