By Microlab

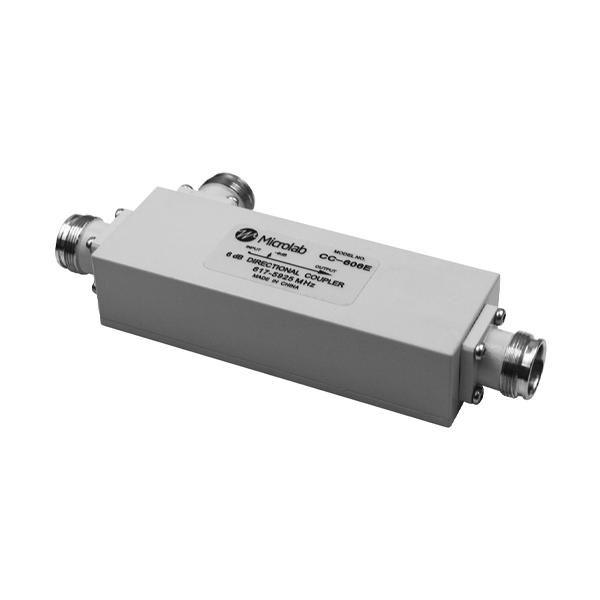

Microlab: 6dB Directional Coupler, 617-5925MHz, 300W, -161dBc, 4.3-10 Female Ports
Part Number:
CC-606E
Couldn't load pickup availability
Microlab: 6dB Directional Coupler, 617-5925MHz, 300W, -161dBc, 4.3-10 Female Ports
- Frequency: 617 to 5925 MHz
- Directivity:
- 20 dB min for 617-2700MHz
- 18 dB min for 2700-4900MHz
- 17 dB min for 4900-5925MHz
- VSWR:
- 1.20:1 max for 617-3800MHz
- 1.30:1 max for 3800-5925MHz
- PIM: -161 dBc (-118 dBm) min.
- Power Rating: 300 W avg., 1 kW pk*
- Dissipative Loss: 0.3 dB max
- Impedance: 50Ω nominal
- Group Delay: 1.2 ns typ.
- Environment: -40°C to +75°C, IP67
- Housing Finish: Painted
- Connectors: 4.3-10 (f), 4-hole Flange Triplate
| Attenuation | |
|---|---|
| Frequency range | |
| Connection type | |
| Wattage |
