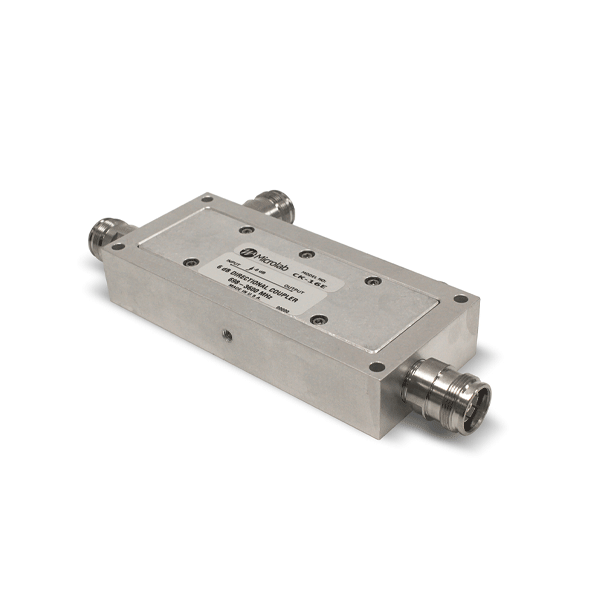

Microlab: 6dB Directional Coupler, 617-3800MHz, 200W, -161dBc, 4.3-10 Female Ports
Part Number:
CK-16E
Couldn't load pickup availability
Microlab: 6dB Directional Coupler, 617-3800MHz, 200W, -161dBc, 4.3-10 Female Ports
| Frequency: | 617-3800 MHz |
| Coupling: | 6 dB |
| Coupled Loss: | 1.26 dB |
| Power: | 200 W avg., 1.5 kW pk* |
| Directivity: | 20 dB min., 694-2500 MHz |
| 18 dB min., 2500-3300 MHz | |
| 16 dB min., 3300-3600 MHz | |
| 14 dB min., 3600-3800 MHz | |
| VSWR: | 1.20:1 max., 694-2500 MHz |
| 1.25:1 max., 2500-3300 MHz | |
| 1.40:1 max., 3300-3600 MHz | |
| 1.45:1 max., 3600-3800 MHz | |
| PIM: | -161 dBc (2 tones at +43 dBm) |
| Connectors: | Triplate |
| Ingress Protection: | IP64 |
| Attenuation | |
|---|---|
| Frequency range | |
| Connection type | |
| Wattage |
