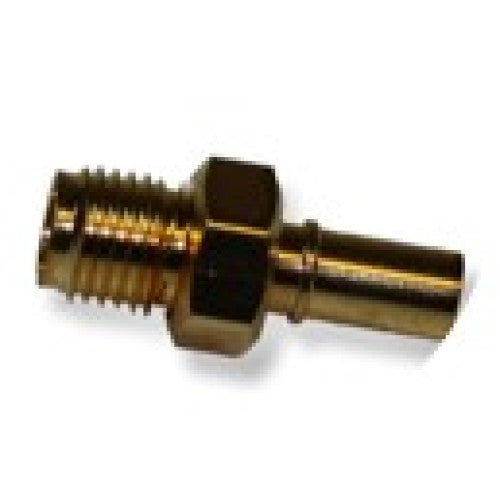

1.0/2.3 Female to SMA Female RF Adapter
Part Number:
123-1023FSMAF
Couldn't load pickup availability
1.0/2.3 female to SMA female RF Adapters are used to either change the gender from one connector type to another, to mate different connector types together or as disposable interfaces for test and measurement applications
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| Insertion Loss | < 0.05 dB |
| VSWR | < 1.10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to +155°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Mating Cycles | 500 |
| Connector A | 1.0/2.3 female |
| Connector B | SMA female |
| Connection type |
|---|
