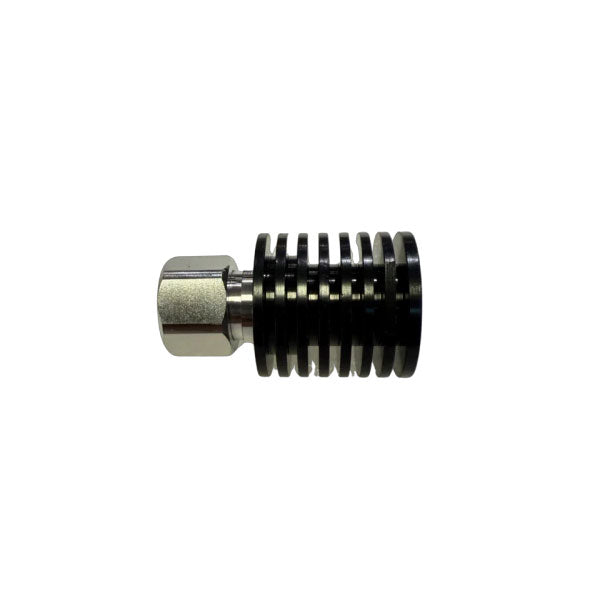

123eWireless: 2.2-5 Male 10-Watt RF Load Terminator
Part Number:
123-JMT10
Contact Us for Pricing & Availability
Couldn't load pickup availability
123eWireless: 2.2-5 Male 10-Watt RF Load Terminator
| CROSS REFERENCE | |
| Alternative To | C225M-10, LCTR1163 |
| ELECTRICAL SPECIFICATIONS | |
| Average Power | 10 Watts |
| Frequency Range | DC-6Ghz |
| Impedance | 50 ohm |
| PIM | <-150dBc |
| VSWR | ≤1.15 @ 3GHz; ≤1.25 @ 3-6 GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C ~ 155°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 40 / 085/ 21; IP67 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Weight | 0.0593 lbs |
| Connector A | 2.2-5 |
Contact Us for Pricing & Availability
| Frequency range | |
|---|---|
| Connection type | |
| Wattage |
