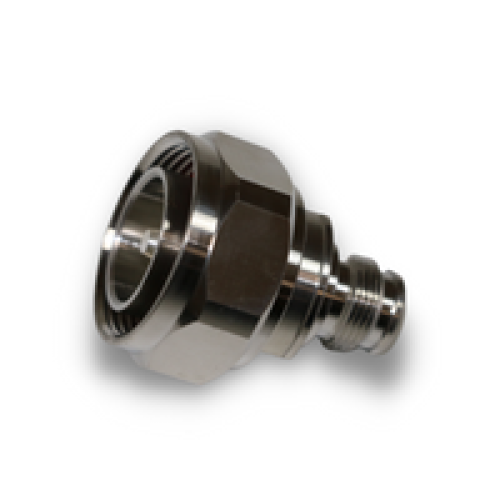

2.2-5 Female to DIN Male RF Adapter
Part Number:
123-DMJF
Couldn't load pickup availability
2.2-5 Female to DIN Male Adapter RF coaxial adapter is used to change the gender from one connector type to another, to mate different connector types together or as a disposable interface for test and measurement applications where main launch cables need protection from wear and tear. 123eWireless RF adapters are designed for low loss with maximum mating cycles without degradation.
| CROSS REFERENCE | |
| Alternative To | AD-716P225J-1, PE9799 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-8GHz |
| Impedance | 50 ohm |
| Insertion Loss | -0.05 dB |
| PIM | ≤160dBc @ 1800MHz |
| Return Loss | ≥26 dB |
| VSWR | ≤1.15 @3GHz, ≤1.25 @3GHz-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +155°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Mating Cycles | 500 |
| Connector A | 2.2-5 Female |
| Connector B | 7/16 DIN Male |
| Connection type |
|---|
