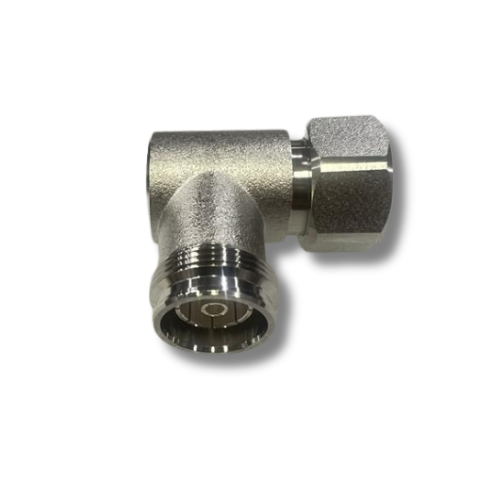

4.3-10 Female Right Angle to 4.3-10 Male RF Adapter
Part Number:
123-HFRHM
Couldn't load pickup availability
4.3/10 Female Right Angle to 4.3/10 Male Adapter RF coaxial adapter is used to change the gender from one connector type to another, to mate different connector types together or as a disposable interface for test and measurement applications where main launch cables need protection from wear and tear. 123eWireless RF adapters are designed for low loss with maximum mating cycles without degradation.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6Ghz |
| Impedance | 50 ohm |
| Insertion Loss | 0.05dB |
| PIM | ≤ -160 dBc |
| Return Loss | 1.10 Max @4-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to +90°C |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Mating Cycles | 100 |
| Connector A | 4.3-10 Female Right Angle |
| Connector B | 4.3-10 Male |
| Connection type |
|---|
