By 123eWireless

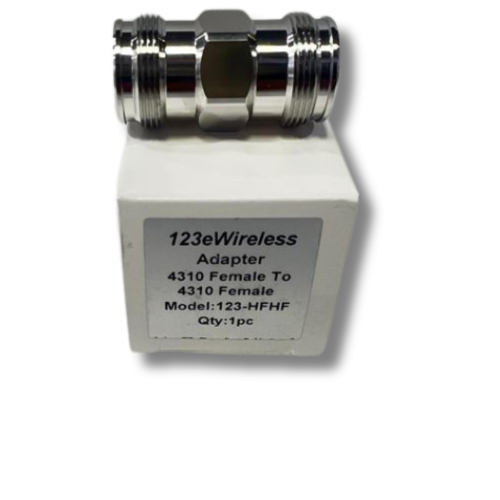

4.3-10 Female to 4.3-10 Female RF Adapter
Part Number:
123-HFHF
Couldn't load pickup availability
4.3/10 Female to 4.3/10 Female Adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications where main launch cables need protection from wear and tear. 123eWireless RF adapters are designed for low loss with maximum mating cycles without degradation.
| CROSS REFERENCE | |
| Alternative To | |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| PIM | ≤ -166 dBc |
| VSWR | 0-6 GHz ≤1.06 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Mating Cycles | 500 |
| Connector A | 4.3-10 Female |
| Connector B | 4.3-10 Female |
| Connection type |
|---|
