By 123eWireless

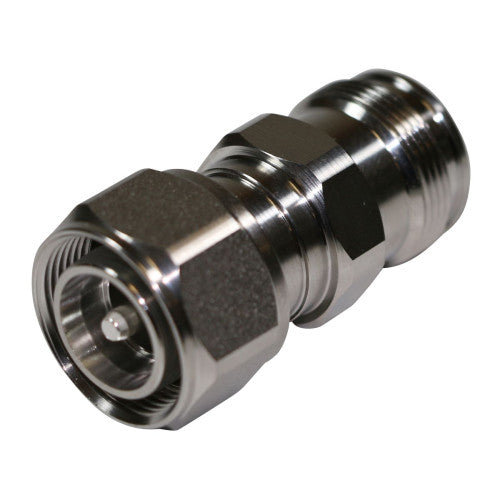

4.3-10 Female to 4.3-10 Male RF Adapter
Part Number:
123-HFHM
Couldn't load pickup availability
4.3/10 Female to 4.3/10 Male Adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications where main launch cables need protection from wear and tear. 123eWireless RF adapters are designed for low loss with maximum mating cycles without degradation.
| CROSS REFERENCE | |
| Alternative To | 64S101-K00B1, RFD-43M-F |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| PIM | ≤ -166 dBc |
| VSWR | 0-6 GHz ≤1.06 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Mating Cycles | 500 |
| Connector A | 4.3-10 Female |
| Connector B | 4.3-10 Male |
| Connection type |
|---|
If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible.
